BHP SERIES · BHP-280D

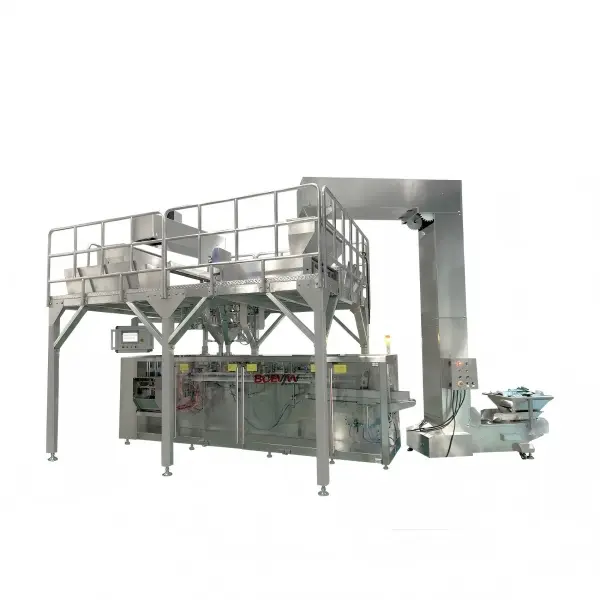

BHP-280D Duplex Horizontal Premade Pouch Packing Machine
The BHP-280D Duplex Horizontal Premade Pouch Packing Machine is an automatic pick-fill-seal system designed for efficient packaging of pre-made pouches. With a dual-station pouch picking, filling and sealing system, the BHP-280D can process up to 80–100 pouches per minute. It is suitable for Flat Pouches and Doypacks containing powders, granules, liquids, viscous products, solids and tablets.
Packaging Capacity
80-100ppm
Filling Capacity
600ml
Pouch Width
90-140mm
Pouch Length
110-300mm
Pouch Styles
Bag formats this machine produces.
3 Side Seal Sachet
4 Side Seal Sachet
Spout Pouch
Zipper PouchSee it run
Real footage from our Shanghai factory - duplex spout pouch packing machine for 200ml oil products
Real footage from our Shanghai factory - duplex spout pouch packing machine for 200ml oil productsBHP-280D · filmed on our production floor
Duplex Premade Pouch Packaging
The BHP-280D uses two working stations to perform pouch picking, filling and sealing operations. This dual-station configuration allows two bags to be processed simultaneously within a single packaging cycle, thereby increasing production throughput while maintaining automated bag handling.
This machine is suitable for manufacturers that need a higher-output solution for pre-made pouch filling and sealing.
| Model | Pouch Width | Pouch Length | Filling Capacity | Packing Speed | Function |
|---|---|---|---|---|---|
| BHP-280D | 90-140 mm | 110-300 mm | 600 ml | 80-100 ppm | Flat Pouch; Doypack |
| BHP-280DZ/DC | 90-140 mm | 110-300 mm | 600 ml | 80-100 ppm | Flat Pouch; Doypack; Zipper Pouch; Spout pouch |
Automatic Pick, Open, Fill and Seal

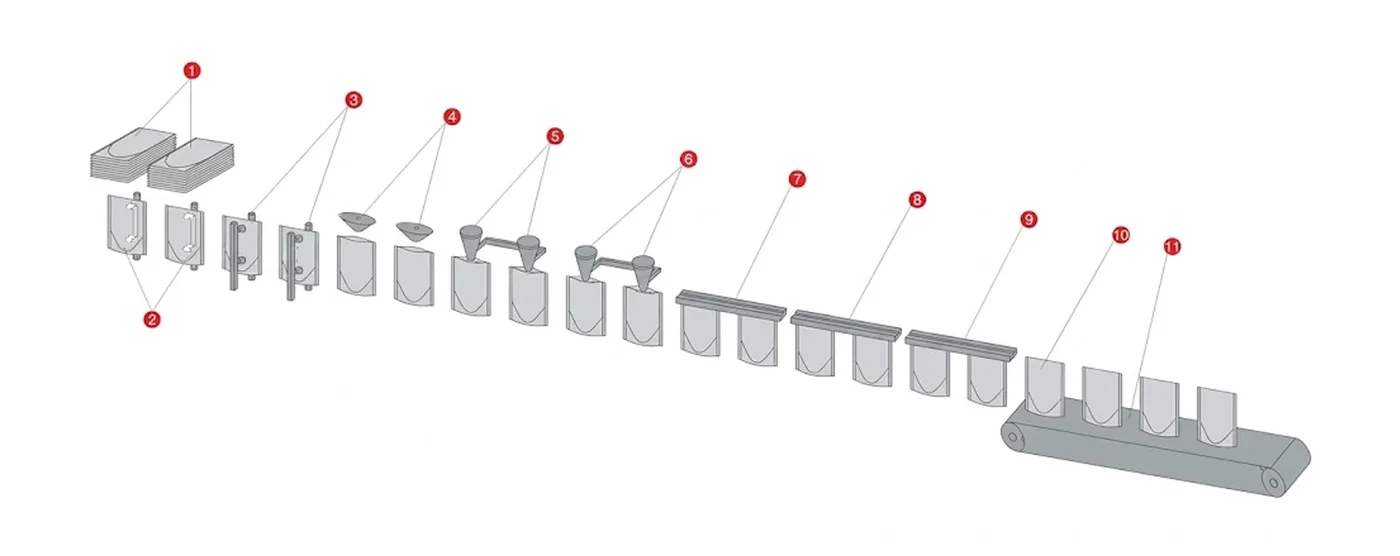

Workflow of the Dual-Lane Horizontal Premade Bag Pick, Fill, Seal Packing Machine
- Double Pre-made Pouch Stack
- Double Flip-out Pouch-Picking
- Double Pouch Openning
- Double Air Flushing
- First Filling
- Second Filling
- Auxiliary Pouch Stretching
- Heat Top Seal
- Cooling Top Seal
- Finished Product Outlet
The filling system can be configured according to the characteristics and filling requirements of the product.
Reliable Pouch Opening
The BHP-280D utilizes a dual-stage bag-opening process—incorporating auxiliary air blowing and bag-opening detection—to ensure that pre-made bags are fully and correctly opened prior to filling. This helps reduce filling problems caused by incomplete pouch opening and supports more stable automatic operation.
Two-Stage Pouch Sealing
The machine uses heat sealing followed by cooling sealing. The first sealing step creates the pouch seal, while the cooling stage helps stabilize the sealed area. Sealing temperature and machine parameters can be adjusted according to pouch material and production requirements.
Engineering & Features
What pouch types can the BHP-280D handle?
The standard BHP-280D is designed for Flat Pouches and Doypacks. Other pouch formats can be evaluated according to the machine configuration.
What is the packaging speed of the BHP-280D?
The standard packaging speed is 80–100 ppm, depending on the product, pouch size, filling system and production conditions.
How does the machine ensure proper pouch opening?
Pouch opening detection and assisted air blowing help confirm and improve pouch opening before filling.
How To Improve The Aesthetics Of Bags?
By adjusting the temperature of the sealing block, the seals more smoothly.
