BHS SERIES · BHS-240D

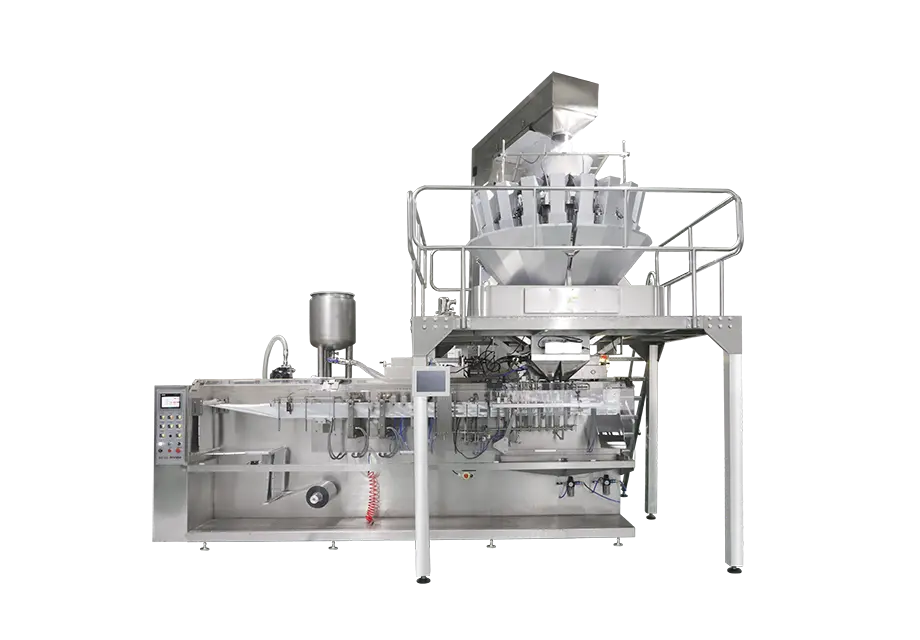

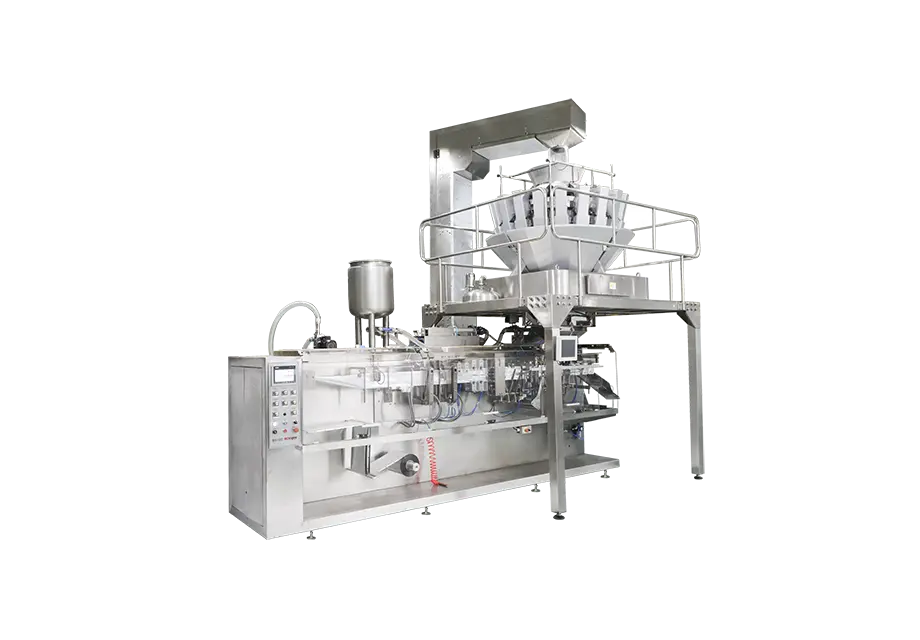

BHS-240D Dual Lane HFFS Flat Pouch Packing Machine
The Boevan BHS-240D is a horizontal form fill seal (HFFS) packing machine designed for small and medium-sized flat pouches with 80-100ppm packing speed. The machine is equipped with two sets of workstations and can form, fill and seal two pouches simultaneously. It is suitable for applications such as cosmetic samples, ketchup, meal replacement powder and other products requiring small flat pouches.
Packaging Capacity
80-100ppm
Filling Capacity
180ml
Pouch Width
70-120mm
Pouch Length
100-225mm
See it run
Real footage from our Shanghai factory — About HFFS Machine for sachet packing with counting
Tablets Sachet Packing with CountingBHS-240D · filmed on our production floor
Product Overview
The BHS-240D integrates pouch forming, filling, and sealing in the HFFS packaging process. The equipment features a compact, modular layout, integrating an electrical cabinet, film unwinding device, various integrated molding units, and fully automated control functions. This ensures stable operation, reduced commissioning time, and reliable performance under harsh operating conditions.
Applications
Powders: milk powder, coffee, protein powder, freeze-dried powder, powdered supplements. Granules: sugar, salt, capsule, tablets, spices. Liquids: sauces, beverages, yogurt, cosmetics. Solids: gummy, tube, stick. Small-dose products: supplements, household chemical products, and food ingredients.
Engineering & Features
How To Ensure The Bag Is Well Sealed？
Heat sealing first, then cold sealing. After two sealings, the airtightness of the bag is ensured.
How To Ensure The Integrity Of Bag Opening?
Bag opening is performed simultaneously from both the top and bottom; bag opening detection and assisted air blowing help achieve a more complete pouch opening before filling.

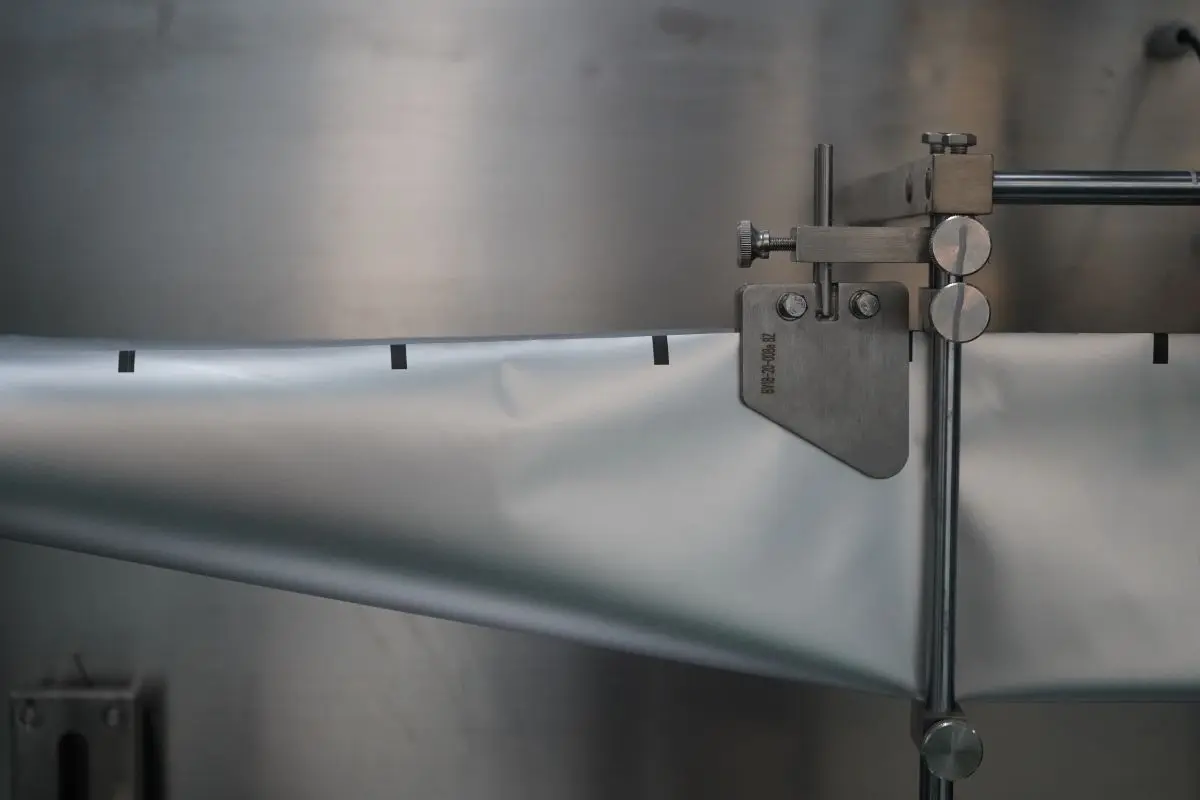

How To Ensure Accurate Cutting?
Control edge misalignment through effective film traction and a photocell system, select appropriate cutting equipment, and employ dual cutting methods to enhance cutting accuracy.
How To Improve The Aesthetics Of Bags?
Ensure precise alignment and control bag symmetry; adjust the sealing block temperature to achieve a flatter, smoother seal.
