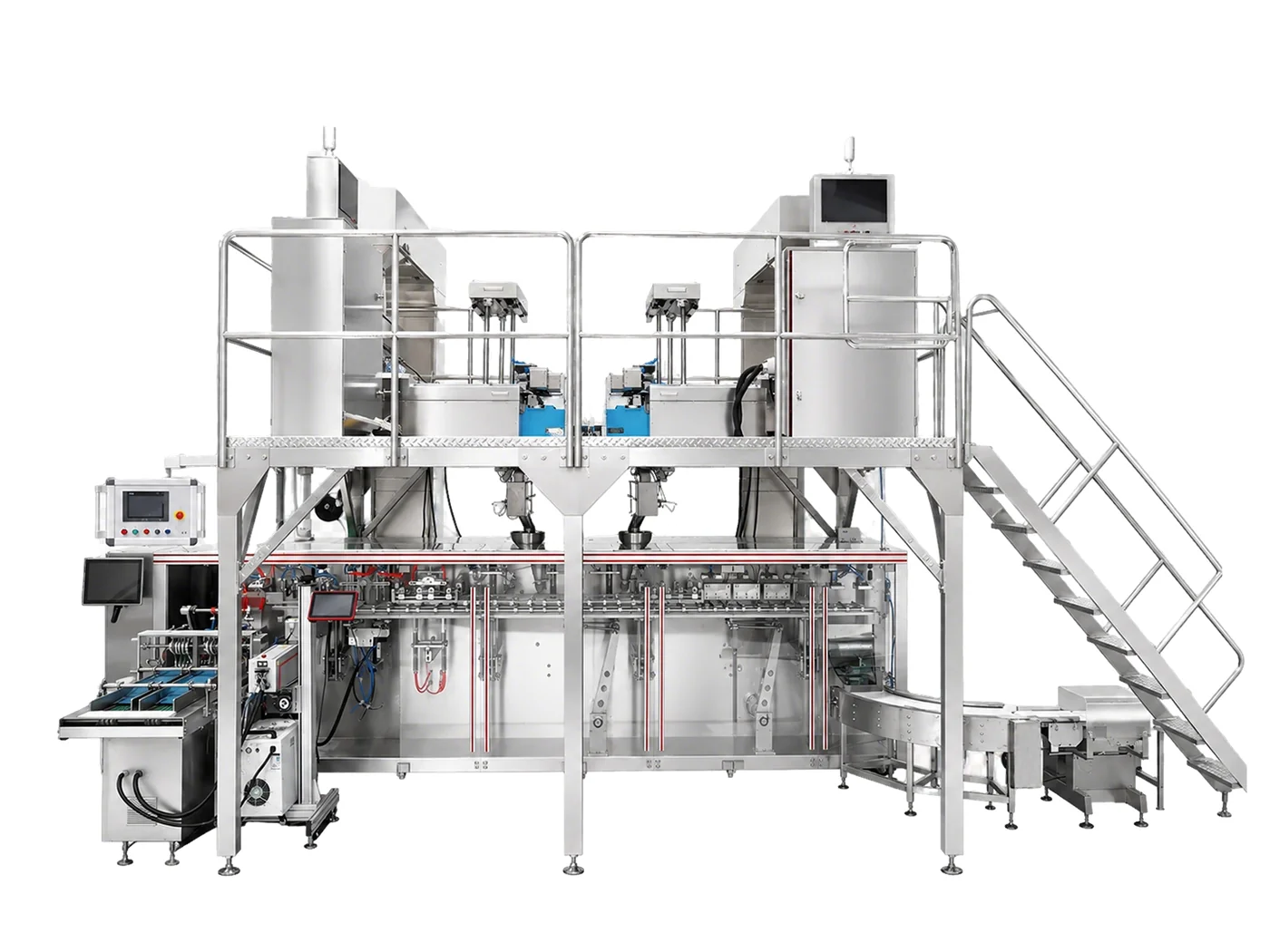

BHP-360D/360DZ Duplex Horizontal Pouch Pick Fill Seal Machine

The BHP-360D Duplex Horizontal Pouch Pick Fill Seal Machine is an fully-automatic pre-made pouch packaging machine designed for higher-capacity pouch filling and sealing applications. With a duplex pouch pick-fill-seal system and a packaging speed of 80–100 ppm, the BHP-360D is suitable for a wide range of pre-made pouches, including stand-up pouches, zipper pouches, spout pouches and flat pouches. The machine is particularly suitable for pharmaceuticals, dietary supplements, food and other products requiring stable pouch handling and accurate filling.

Packaging Capacity

80-100ppm

Filling Capacity

800ml

Pouch Width

90-180mm

Pouch Length

110-300mm

Duplex Pick-Fill-Seal Packaging

The BHP-360D combines automatic pouch picking, opening, filling and sealing in a horizontal packaging system. Its duplex configuration is designed for continuous pouch packaging at 80–100 ppm, while the automatic pouch handling system helps maintain stable production during long operating cycles.

The filling system can be configured according to the product characteristics, target filling volume and required accuracy.

The same duplex platform covers the zipper configuration previously listed as BHP-360DZ (stand-up / zipper pouches for capsules, tablets and softgels), as shown in the factory video above.

Why Choose the BHP-360D?

The BHP-360D series elevates capabilities beyond merely meeting basic production needs.

Full Servo Pouch Magazine

The BHP-360D uses a servo-driven pouch magazine and pouch picking system to improve pouch feeding stability. The servo pouch handling system helps control pouch positioning and picking more accurately, reducing feeding abnormalities and unnecessary pouch return during automatic operation. This is particularly useful when packaging products in different pre-made pouch formats.

Pouch pick inspection

A pouch inspection station has been added after the pouch picking station:

Height inspection: This primarily ensures the aesthetic quality of the pouch seal and significantly reduces issues with uneven seal thickness.
Thickness inspection: This detects irregularities in pouch picking, such as accidentally grabbing multiple pouches stuck together.
Code inspection: This feature is included for applications involving printed codes or QR codes.

Intelligent No-Fill Protection

The BHP-360D is equipped with pouch detection functions to help prevent filling errors during automatic operation.

No Pouch, No Fill: If no pouch is detected after pouch picking, the filling system will not operate.
Pouch Not Opened, No Fill: If the pouch is not properly opened, the filling process will not start.

These functions help reduce product spillage, pouch waste and filling errors caused by missing or improperly opened pouches.

Designed for Pharmaceutical & Supplement Packaging

The BHP-360D is particularly suitable for applications where stable pouch handling, accurate filling and hygienic machine construction are important.

Typical applications include: Pharmaceutical Products · Dietary Supplements · Nutritional Products · Food & Snacks · Coffee · Pet Food · Cosmetics · Daily Chemicals

For pharmaceutical and supplement applications, machine configuration and material requirements should be selected according to the specific production and hygiene standards of the application.

Engineering & Features

What is the BHP-360D?

The BHP-360D is a duplex horizontal pre-made pouch packaging machine that automatically picks, opens, fills and seals ready-made pouches.

Can the BHP-360D pack zipper and spout pouches?

Yes. The BHP-360D model supports packaging for both zipper bags and spout bags. Provide sample bags - the project engineer will make a judgment.

How does the machine improve pouch feeding stability?

The BHP-360D uses a full servo pouch magazine and pouch detection system to improve pouch picking and feeding stability.

How can the integrity of the bag opening be ensured?

Assuming no errors occur during the bag retrieval process, employing a dual-opening method—opening both the top and bottom—results in a more complete opening.
